We have put together a Multi-functional unit with accessories needed for powder feeding – the perfect equipment for plasma welding using powder feedstock.
  • PLASMA/TIG/MMA processes
  • Highly stable plasma arc
  • High deposition rates for shorter welding times
  • Homogeneous, porosity and spatter free coatings
  • Integrated program memory
  • Easy to automize
  • User-friendly touch display
  • Cooling unit with monitoring

Plasma welding has important advantages and offers an attractive alternative to laser welding where high quality is required, particularly for metal sheets and other components.

However, unlike TIG welding, the arc is constricted and concentrated via a copper nozzle. This enables a higher power density. The high concentration of the arc enables square butt welding, avoiding the need for “V” or “J” type joint preparations. Dramatic reductions in the use of filler wire become possible.

The high power density arc permits much higher welding speeds compared to TIG – often increases of 100% or more are attainable; not only does this save time and money, deeper weld penetra- tion is an added benefit. The tungsten electrode has a far longer life as it is positioned inside the plasma nozzle and is thus protected from contamination.

The use of a pilot arc to initiate the transferred welding arc eliminates the risk of HF interference with automated equipment. Often 10,000 or more welds can be made before the electrode needs replacement.

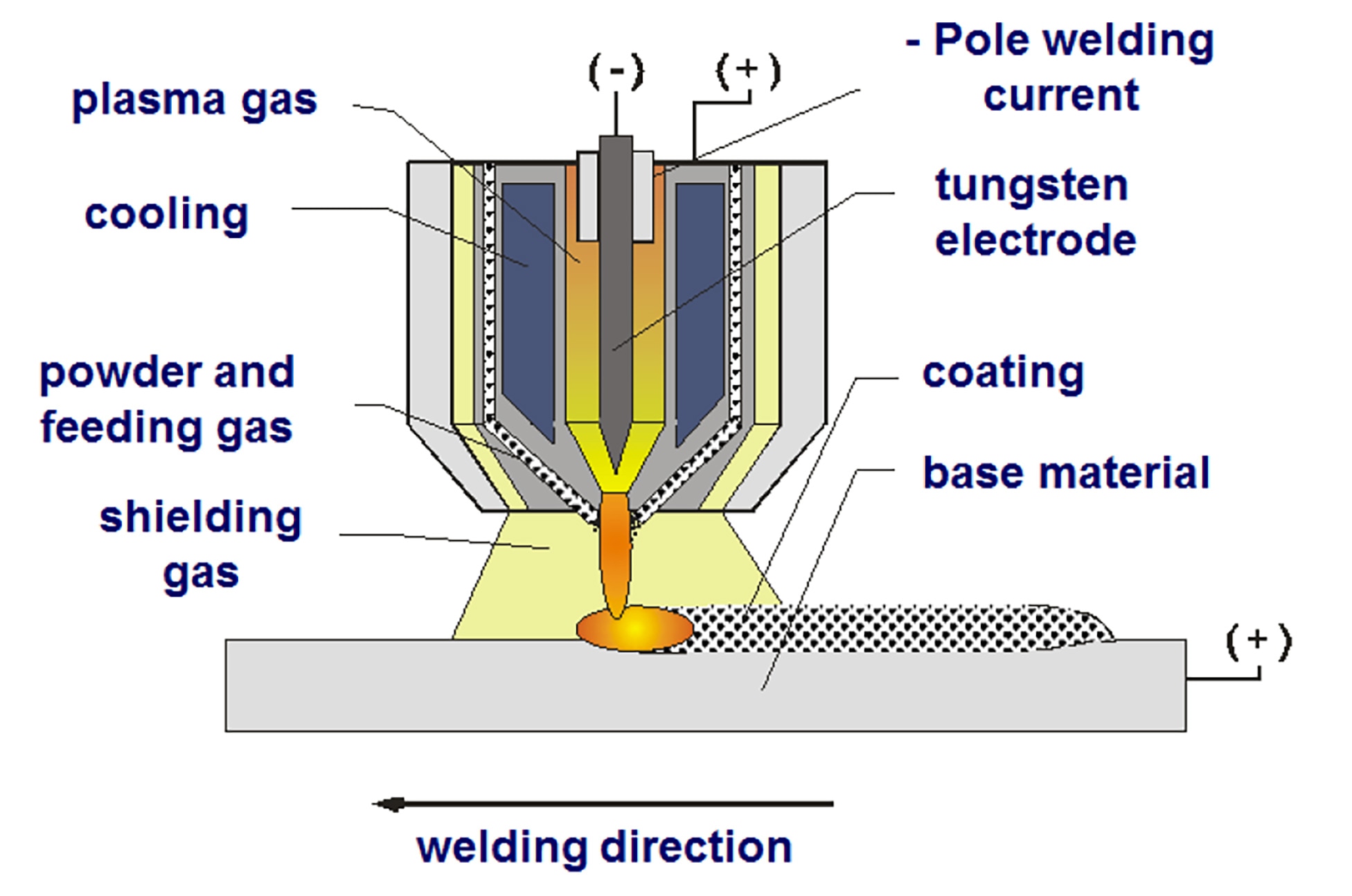

The welding filler alloy, in gas atomized powder or cold wire form is conveyed into the weld pool where the shielding gas protects it from the atmosphere. The plasma arc and the heat input can be far better controlled than a conventional electric arc and the energy is almost completely spent to melt the filler metal, reducing the heat input and dilution to the minimum.

An automation interface enables the unit to be used in robotic and automated applications.

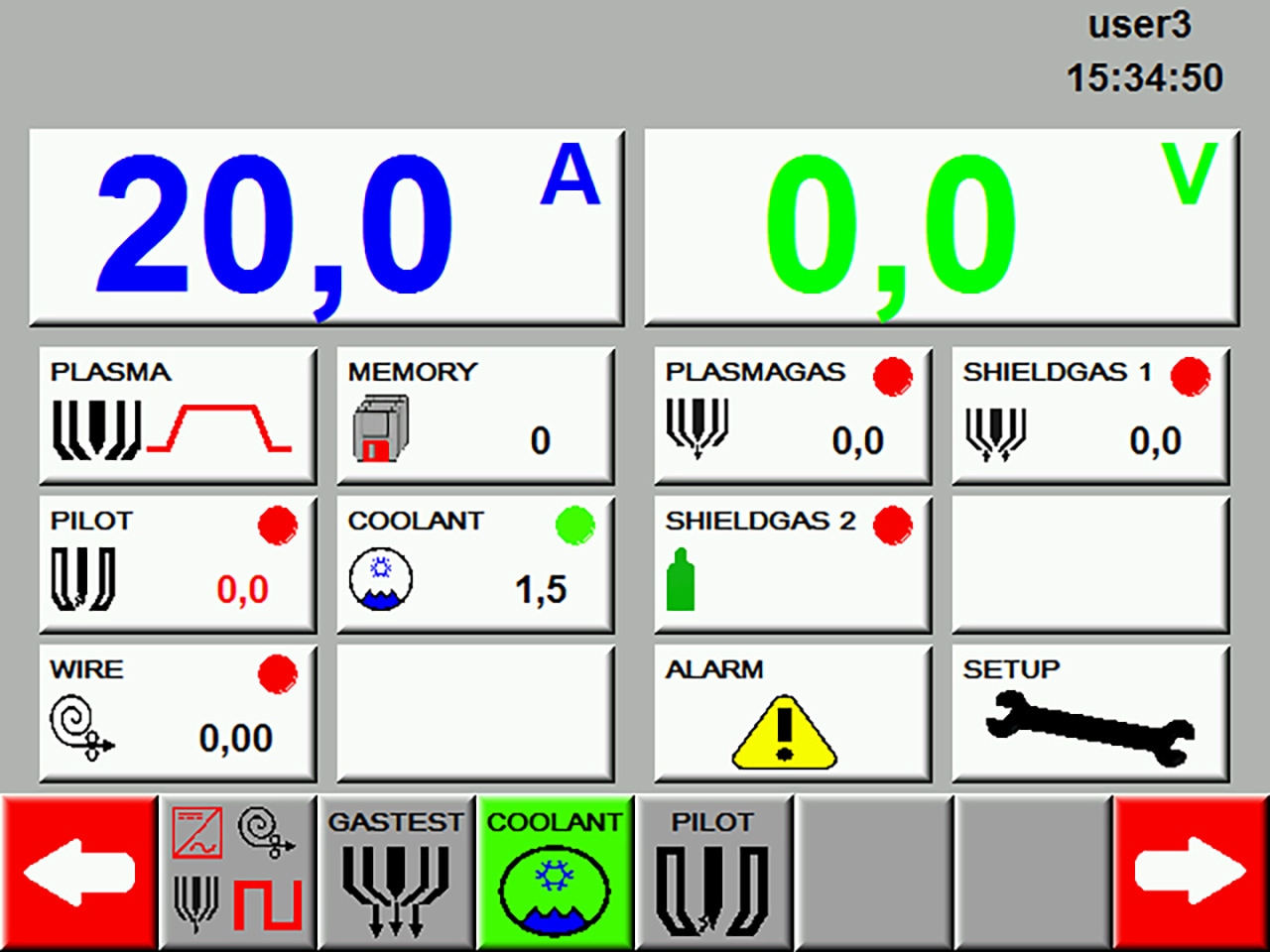

Intuitive Touch Screen
Applicable Welding Methods
  • PLASMA Coating
  • PLASMA Brazing
  • PLASMA Keyhole Welding
  • PLASMA Seam Welding
  • PLASMA Powder
Range of suitable material thickness (Plasma seam welding)~ 0.5 – 3 mm
Range of suitable material thickness (Plasma spot welding)~ 0.5 – 1.5 mm
Automation
  • Capable for automation
Operating modesDC
Supply Voltage3 × 400 V-460 V ±15 % 50/60Hz
Phase3 Phase
Power connection4 × 32 A CCE plug, 6 mm²
Max. welding current at 35 % PMI50; duty cycle (40 °C)350 A
Max. welding current at 100 % duty cycle (40 °C)290 A
Adjustment range welding current3 – 350 A
Max. pilot current at 35 % duty cycle (40 °C)50 A
Max. pilot current at 100 % duty cycle (40 °C)30 A
Adjustment range pilot current0.5 – 50 A
Adjustment range TIG mode3 – 350 A
Adjustment range MMA mode20 – 330 A
CoolingLiquid
Degree of protectionIP 21 S
Length1120 mm
Width450 mm
Height935 mm
Weight105 kg
Features
  • Power source with HF-ignition
  • Pilotinverter with HF-ignition
  • Touch Screen 5,4"
  • USB interface
  • Ethernet interface
  • Integrated welding program memory
  • Integrated cooling
  • Integrated monitoring / gaging of cooling medium
  • Integrated electronic gas regulation (PGR)

    electr. plasma control, range 0,1 – 5 l/min

  • Integrated control of wire feeder / powder feeder
    (MCC)

    Motor control card to drive from an SBI wire case.

    All Compac 6 application-rated, six-inch starters use TeSys D-Line contactors and GJ frame Mag-Gard adjustable instantaneous trip breakers (UL Listed for 100,000 A at 480 V short circuit rating).

    Compac 6 application-rated six-inch starters will mount in 20 in. wide by 15 in. or 20 in. deep sections. Select application rated units based on system voltage and motor full load amps.

  • Integrated control of wire feeder / powder feeder
    (MCU-M)
  • Integrated control of wire feeder and free wheel encoder
    (MCU-MI)
  • Integrated control of 2 wire feeders and free wheel encoder
    (MCU-MSI)
  • Integrated automation interface
  • Software for external controlling via computer
    (diagnostics, parameter setup, documentation)
  • Flowmeter plasma gas
  • Flowmeter shielding gas
  • Remote Control RC-S
  • Foot control of the current
  • Mobility by wheels
  • Parking area for 20l gas bottle
  • HPP1 - High Pressure Pump (1 circuit)
  • HPP2 - High Pressure Pump (2 circuits)
  • Plate Heat Exchanger
Automation Interface “Tiny”
  • Included
Digital Inputs2 × 24 V
Digital Outputs3 × 24 V
Analog Inputs2 × 0 – 10 V
CAN Bus (SBI protocol)
  • Included
Automation Interface “AS/AD Basic”
  • Included
Digital Inputs10
Digital Outputs10
Analog Inputs4
Analog Outputs4
KTY Input1
CAN Interface
  • Included
Connection cable5m
Capability for / availability of specific bus interfaces
  • Included
