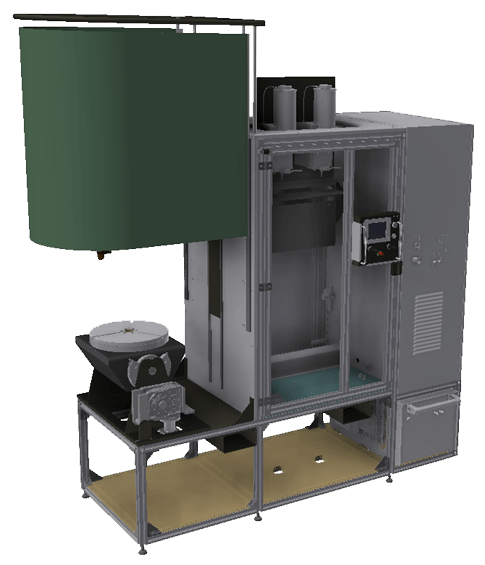

UCD 400TL

Universal PTA coating device for semiautomatic applications

Main parts:

  • Base frame construction of aluminium profiles
  • Turn table with T-slots, tiltable +/-110° (manual via hand wheel), diameter: 400mm, max. weight: 200kg
  • Oscillating unit with 400mm stroke, stepper motor controlled
  • Vertical axis with 400mm stroke, stepper motor controlled
  • Arc voltage control on the vertical axis
  • Special welding curtain, pneumatic lifted
  • Plasma powder torch PP200-R
  • 3-axis-slide, manual
  • Powder feeder PF2
  • Cooling unit for torch cooling
  • Control cabinet incl. remote control

Technical Data:

Compressed air supply:

6bar

Gas supply:

Ar + Ar/H2, 2bar

Supply voltage:

3x400V+N 50/60Hz

Max. power consumption:

20kVA

Welding current (100% ED):

290A

Welding current (40% ED):

350A

Adjustment range:

3-350A

Open circuit voltage:

895V

Pilot current (100%ED):

30A

Adjustment range pilot current:

0,5 – 50A

Degree of protection:

IP21S

Dimensions (L x W x H):

2500x1000x2200mm
