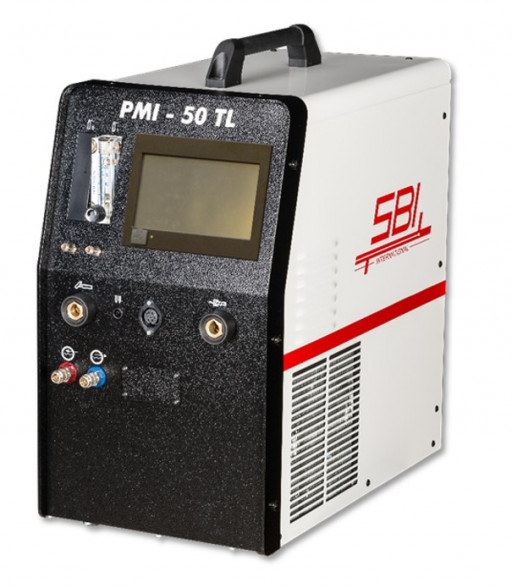

Microplasma - The ideal solution for welding thin sheets with a thickness of up to ~ 1mm. The lowest adjustable welding current is 0,2 Ampere.
TECHNICAL DETAILS
The arc is constricted by a copper nozzle, which results in a high power density. The concentrated arc, in conjunction with the controllable plasma gas, enables higher welding speeds and deeper penetration (root welding) to be achieved, which saves time and money. The strong bundling of the arc and the welding speed mean that only a narrow heat-affected zone is formed, which results in less thermal distortion in the component.
| Applicable Welding Methods | - PLASMA Seam Welding
- PLASMA Brazing
- PLASMA Coating
|
|---|
| Range of suitable material thickness (Plasma seam welding) | ~ 0.1 – 1 mm |
|---|
| Automation | |
|---|
| Operating modes | DC |
|---|
| Supply Voltage | 230 V ±15 % 50/60Hz |
|---|
| Phase | 1 Phase |
|---|
| Power connection | Gardy plug, 2.5 mm² |
|---|
| Max. welding current at 35 % duty cycle (40 °C) | 50 A |
|---|
| Max. welding current at 100 % duty cycle (40 °C) | 30 A |
|---|
| Adjustment range welding current | 0.2 – 50 A |
|---|
| Max. pilot current at 35 % duty cycle (40 °C) | 15 A |
|---|
| Max. pilot current at 100 % duty cycle (40 °C) | 15 A |
|---|
| Adjustment range pilot current | 0.5 – 15 A |
|---|
| Adjustment range TIG mode | 0.5 – 50 A |
|---|
| Cooling | Liquid |
|---|
| Degree of protection | IP 21 S |
|---|
| Length | 620 mm |
|---|
| Width | 300 mm |
|---|
| Height | 555 mm |
|---|
| Weight | 47 kg |
|---|
| Features | |
|---|
| Automation Interface “Tiny” | |
|---|
| Digital Inputs | 4 × 24 V |
|---|
| Digital Outputs | 4 × 24 V |
|---|
| Analog Inputs | 2 × 0 – 10 V |
|---|
| Analog Outputs | 2 × 0 – 10 V |
|---|
| CAN Bus (SBI protocol) | |
|---|
| Capability for / availability of specific bus interfaces | |
|---|
