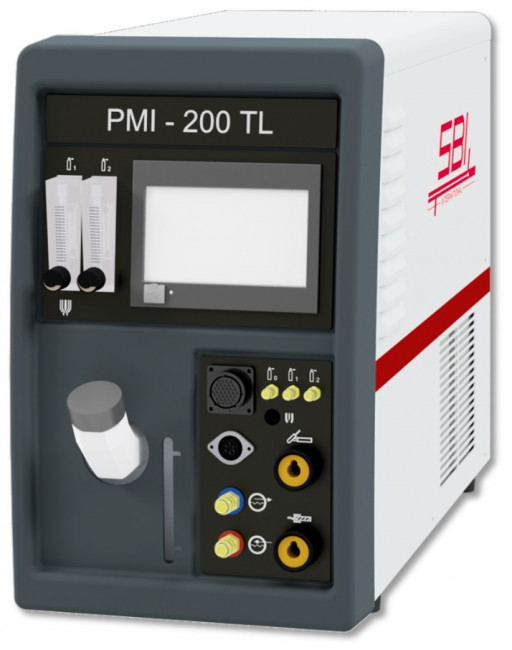

The soft plasma welding machine is used for sheet metal up to 3mm. Mainly used materials for plasma welding are stainless steels, steels, titanium, zirconium and copper.
TECHNICAL DETAILS
The arc is constricted by a copper nozzle, which results in a high power density. The concentrated arc, in conjunction with the controllable plasma gas, enables higher welding speeds and deeper penetration (root welding) to be achieved, which saves time and money. The strong bundling of the arc and the welding speed mean that only a narrow heat-affected zone is formed, which results in less thermal distortion in the component.
- high quality of the seam
- high procedural security
- high degree of automation
- high productivity due to high welding speed
OPTIONEN:
PGR-05: electr. Plasma gas regulation, range 0.1 ÷ 5 l / min
SGR-20: electr. Shielding gas control, range 0.5 ÷ 20 l / min
MCU-MI: Motor control card for controlling one wire/powder feeder
| Applicable Welding Methods | - PLASMA Coating
- PLASMA Brazing
- PLASMA Powder
- PLASMA Spot Welding
- TIG Welding
- PLASMA Seam Welding
|
|---|
| Range of suitable material thickness (Plasma seam welding) | ~ 0.5 – 3 mm |
|---|
| Range of suitable material thickness (Plasma spot welding) | ~ 0.5 – 3 mm |
|---|
| Automation | |
|---|
| Operating modes | DC |
|---|
| Supply Voltage | 3 × 400 V-460 V ±15 % 50/60Hz |
|---|
| Phase | 3 Phase |
|---|
| Power connection | 4 × 16 A CCE plug, 2.5 mm² |
|---|
| Max. welding current at 35 % duty cycle (40 °C) | 200 A |
|---|
| Max. welding current at 100 % duty cycle (40 °C) | 150 A |
|---|
| Adjustment range welding current | 3 – 200 A |
|---|
| Max. pilot current at 35 % duty cycle (40 °C) | 50 A |
|---|
| Max. pilot current at 100 % duty cycle (40 °C) | 30 A |
|---|
| Adjustment range pilot current | 0.5 – 50 A |
|---|
| Adjustment range TIG mode | 3 – 200 A |
|---|
| Cooling | Liquid |
|---|
| Degree of protection | IP 21 S |
|---|
| Length | 700 mm |
|---|
| Width | 340 mm |
|---|
| Height | 555 mm |
|---|
| Weight | 60 kg |
|---|
| Features | |
|---|
| Automation Interface “Tiny” | |
|---|
| Digital Inputs | 4 × 24 V |
|---|
| Digital Outputs | 4 × 24 V |
|---|
| Analog Inputs | 2 × 0 – 10 V |
|---|
| Analog Outputs | 2 × 0 – 10 V |
|---|
| CAN Bus (SBI protocol) | |
|---|
| Digital Inputs | 10 |
|---|
| Digital Outputs | 10 |
|---|
| Analog Inputs | 4 |
|---|
| Analog Outputs | 4 |
|---|
| KTY Input | 1 |
|---|
| CAN Interface | |
|---|
| Connection cable | 5m |
|---|
| Capability for / availability of specific bus interfaces | |
|---|
